New IP40 Indoor Audio Video Cable Connector XLR 4 Pin Female Socket with Solder Adapter and Jack Lead Cable Zinc Alloy Housing

  • Product Details
  • Company Profile

New IP40 Indoor Audio Video Cable Connector XLR 4 Pin Female Socket with Solder Adapter and Jack Lead Cable Zinc Alloy Housing

Products Description

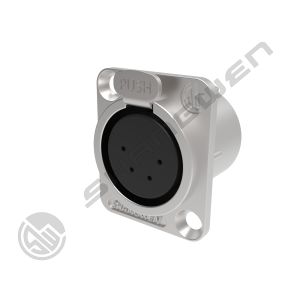

XLR connector-4 pin female socket
Model:
SWF4X-3ZBN-KN (Black)
SWF4X-3ZSN-KN (Silver)

Standard D mounting dimensions, fully matched to existing installation
Light size, can be installed front and back
Zinc alloy shell, contact point gold-plated
Can solve the fast connection requirement of input and output of DMX signal in outdoor conditions in the lighting industry
Protection class IP40
1.Product parameters
Connection Type
XLR
Gender
Female
2.Electrical parameters
Capacitance between contacts
≤7pF
Contact resistance
≤5mΩ
Dielectric strength
1.5kV DC
Insulation resistance
> 1.5GΩ (initial)
Rated current per contact
7.5A
Rated voltage
<50V
3.Mechanical parameters
Insertion force
≤ 40N
Withdrawal force
≤ 40N
Service life
>1000 mating cycles
Chassis shape
D type
4.Material and environmental parameters
Contacts
Cu alloy
Contact plating
Au
Insert
Polyamide (PA 66 +30 % GF)
Shell
Zinc diecast (ZnAl4Cu1)
Shell plating
Cr black
Solder ability
Complies with IEC 68-2-20
Flame-retardant grade
UL 94 HB
Protection class
IP40
Temperature range
-20℃to +80℃
5.Size reference (unit /mm)
Application area
Company Information
Patent & Certification
Exhibition activities
Packaging reference
Payment and logistics
FAQ
1.Why do we choose SHANG WEN supply?
A:We promise:All of our products are power regulated.The output voltage and current are true one.all with good quality and competitive price.We assure you timely delivery by keeping 80% standard products inventory and best after-sale service.All have done 100% long time ful-load aging test/ burn-in test before shipment.

2.What is the applicable range of this product?
A:Suitable for fixed & rental installation display screen, stage lighting and sound, security, new energy, medical etc.

3.Can your products pass CE/ROHS certificate?
A:Yes,our products meet the industrial standards,like:CE/UL/RoHS/CCC.

4.Accept sample order ?What is your minimum order quantity?
A:Trial order or sample order is accept,but same cost as bulk.

5.What are the shipping ways you can offer?
A:By air/sea according to customers'requirements.

6.Do your products come with warranty?
A:Yes,we promise 1-3 year warranty according to different model.
